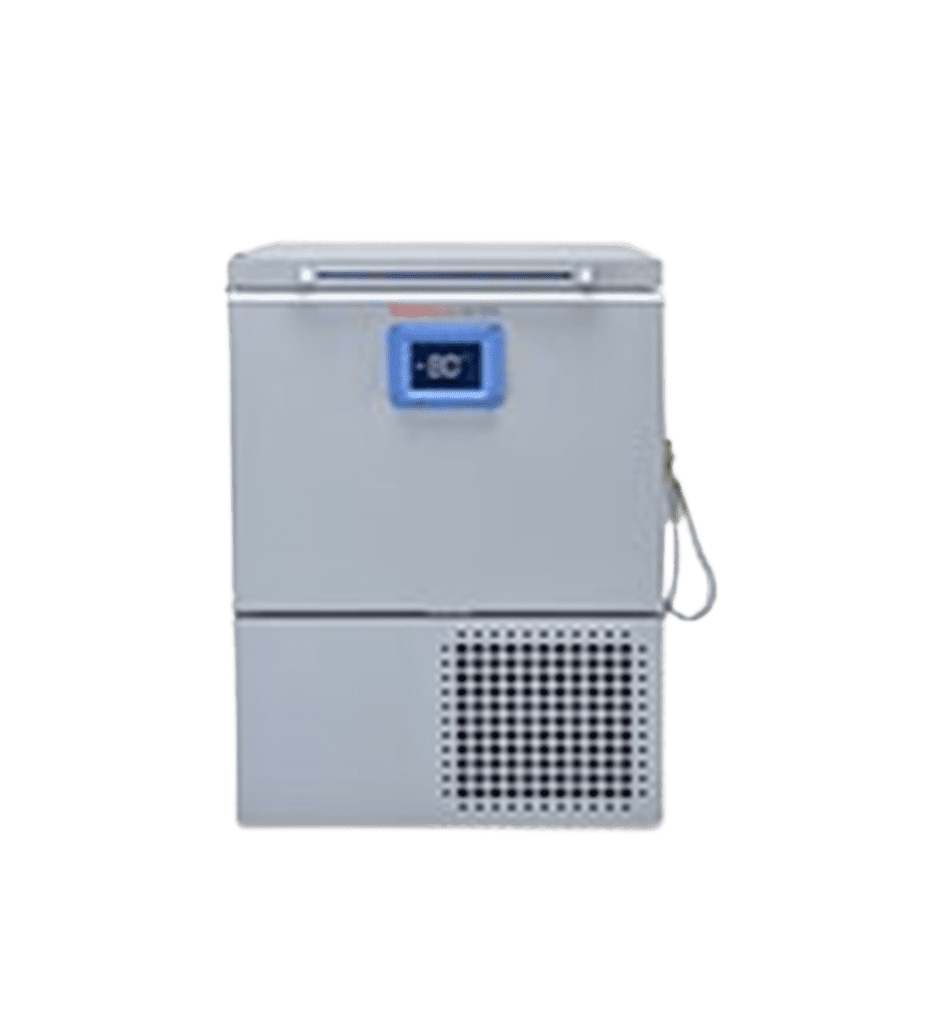

(-)80°C TDE ULT Chest freezers
Manufacturer – Thermo Fisher Scientific
Description: The TDE Series ultra-low chest freezers deliver stable, energy-efficient cooling down to –86 °C, combining advanced hydrocarbon‑based refrigeration with robust insulation for sample integrity and sustainability. They come in multiple sizes supporting high-density vial storage (from ~3,600 up to ~21,600 × 2 mL vials) and feature a user‑friendly interface and rapid recovery for frequent access environments.
Technical Specifications:
Temperature capability: -50°C to -80°C
Storage capacity 2” boxes: 63-396
Storage capacity volume cu. ft. (L): 3 (85) – 20 (566)
Compliance: GP/ Medical device Class II 510(K) Exempt
Sound: Quiet
Voltage capability: 115V/60Hz
208-230V/60Hz
230V/50Hz
ENERGY STAR rated °C: N/A
Energy consumption: As low as 4.4 kWh/day
System refrigerants: Natural HC, environmentally friendly
User interface: HIC Touch Button
Remote monitoring options: Device Link Connect Smart-Vue Pro InSight
Available options: LN₂/CO2 backup chart
Key features:
• H‑drive hydrocarbon refrigeration.
• Rapid temperature recovery.
• High-density sample storage.
• Intuitive user interface with capacitive touch display, USB port for data export, and “eye‑level” readability.
• Insulation combining vacuum panels and non‑HFC blowing agents for low heat ingress and environmental compliance.
• Multi‑door design (inner doors) to limit cold air loss during access.
• Alarm and security features
Applications: Ideal for biobanking, pharmaceutical research, long-term sample / cell storage, clinical labs, and cell & gene therapy sample preservation.
Models:
• TDEC06386FA
• TDEC06386FV
• TDEC25286FA
• TDEC25286FD
• TDEC25286FV
• TDEC39686FA
• TDEC39686FD
• TDEC39686FV
• TDEC06386LA
• TDEC06386LV
• TDEC25286LA
• TDEC25286LD
• TDEC25286LV
• TDEC39686LA
• TDEC39686LD
• TDEC39686LV
