Technical Specifications:
Dimensions (L×W×H): 25.6 cm × 14.6 cm × 6.1 cm (10.1 in × 5.7 in × 2.4 in)
Weight: 1.9 kg (4.2 lb)
Spectral Range: FTIR – 4000 cm⁻¹ to 650 cm⁻¹; Raman – 250 cm⁻¹ to 2875 cm⁻¹
Spectral Resolution: FTIR 4 cm⁻¹; Raman 7–10.5 cm⁻¹ (FWHM)
Optics: FTIR via ATR diamond crystal (single bounce); Raman via fiber-optic probe
Power Supply: Internal 3.7 V Li-polymer battery, 3× CR123A batteries, or 12 V DC adapter
Ruggedness: MIL-STD-810G and IP67 certified
Data Export Formats: SPC, text, JPEG, or PDF
Mixture Analysis: Identifies up to 4 components in mixtures
Enhanced Capability: Includes SERS (via H-Kit) for low-dose analysis with LowDoseID
Key Features:

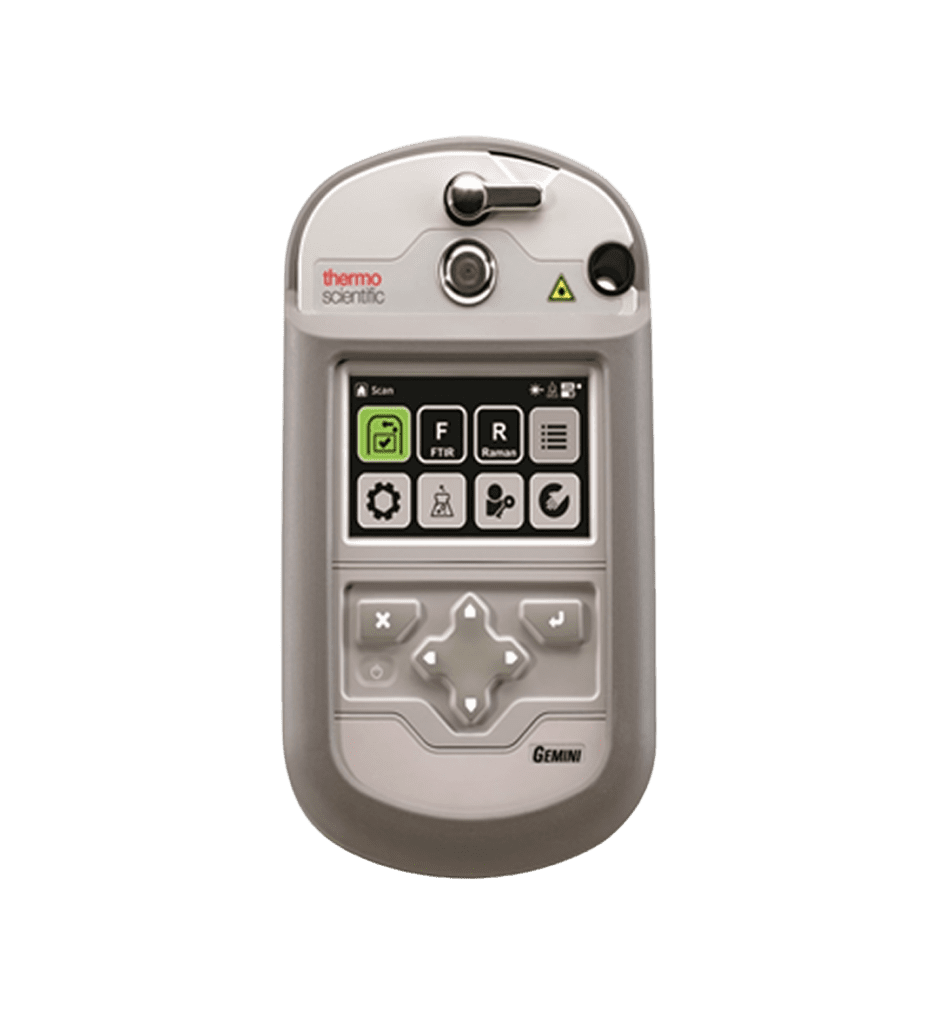

• Dual-technology handheld combining Raman and FTIR spectroscopy for confirmatory chemical ID
• LowDoseID with SERS enables detection of low-concentration drugs and trace substances
• Two scan modes: ID mode for full Raman + FTIR analysis
Screener mode (with LowDoseID) for rapid low-dose narcotics screening
• Intuitive glove-operable touchscreen and keypad interface
• Lightweight, field-ready, and MIL/IP-certified for harsh environments
• Optional integration with HazMasterG3 software for decision support and mixture analysis
Applications: Used by law enforcement, military, hazmat, and public safety teams for rapid identification of unknown chemicals, explosives, and illicit drugs including low-dose mixtures in the field.
