Heating Plate Material :Aluminium Alloy with Ceramic Coating
Dimension of Heating Plate : Ø 145 mm
Three display windows for : Temp., RPM and Time
Speed Range : 50-1500 RPM
Maximum Stirring bar Length : upto 80mm bar (at lower speed)
Temperature Range : Ambient to 350°C
Adjustable safety cut off : 50-400°C
Control accuracy of PT 100 : ± 1K
Weight of body : 3.1 kgs
Dimension of Hot Plate : 273x160x102mm
Permissible ambient Temp. : 5-40°C
Connectivity : WiFi/USB
Permissible relative moisture : 80%
RS 232 Interface : Yes (For Programming)
IP Class : 32
Weight of Capacity : 20 Ltr
Power Input : 650W
Aluminium Alloy/Ø145 Ceramic Coated Top

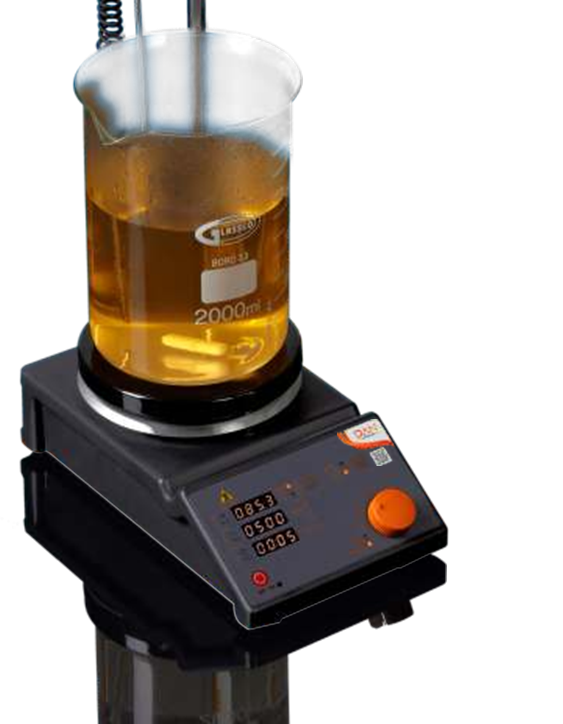

Magnetic Stirrer with Hotplate - Digital
- Can be operated with Labs-connect App over Wifi/USB Controls
- Powerful 650W Heater Heat Evenly, rapidly & given result quickly
- PU Coated Aluminium Alloy Moulded Construction
- Auto Power “ON” possible
- Chemically resistant keypad
- Even heat distribution at faster rate
- Thermal insulation for cool body operation
- Digital set up temperature controller with independent LED display
- Set safety cut-off for maximum temperature limit for top plate or probe
- Installed with double PT sensors for fail safe operating mechanism
- Only with Battery for domestic
- Inclusive PT 100 temperature sensor probe
- Audible alarm at time cycle end for safety and ease of unsupervised operation
- Top plate Ø 145 mm to assist beaker upto 2000 ml & Adapter
- Compatible for use with all major brands top assemblies 1 Cavity, 3 Cavities or Multiple Cavities
- Digital setup of time with independent LED display
- Selection of plate and probe temperature
- Error code display for failures
- Digital setup of RPM with independent LED diplay
- Count-up indication of minutes and hours
- Single multi-turn intelligent knob Operation
- Selection of Celsius and Fahrenheit
- High magnetic strength
Including Accessories
Accessory (Aluminium Adapter for Round Bottom Flasks)
