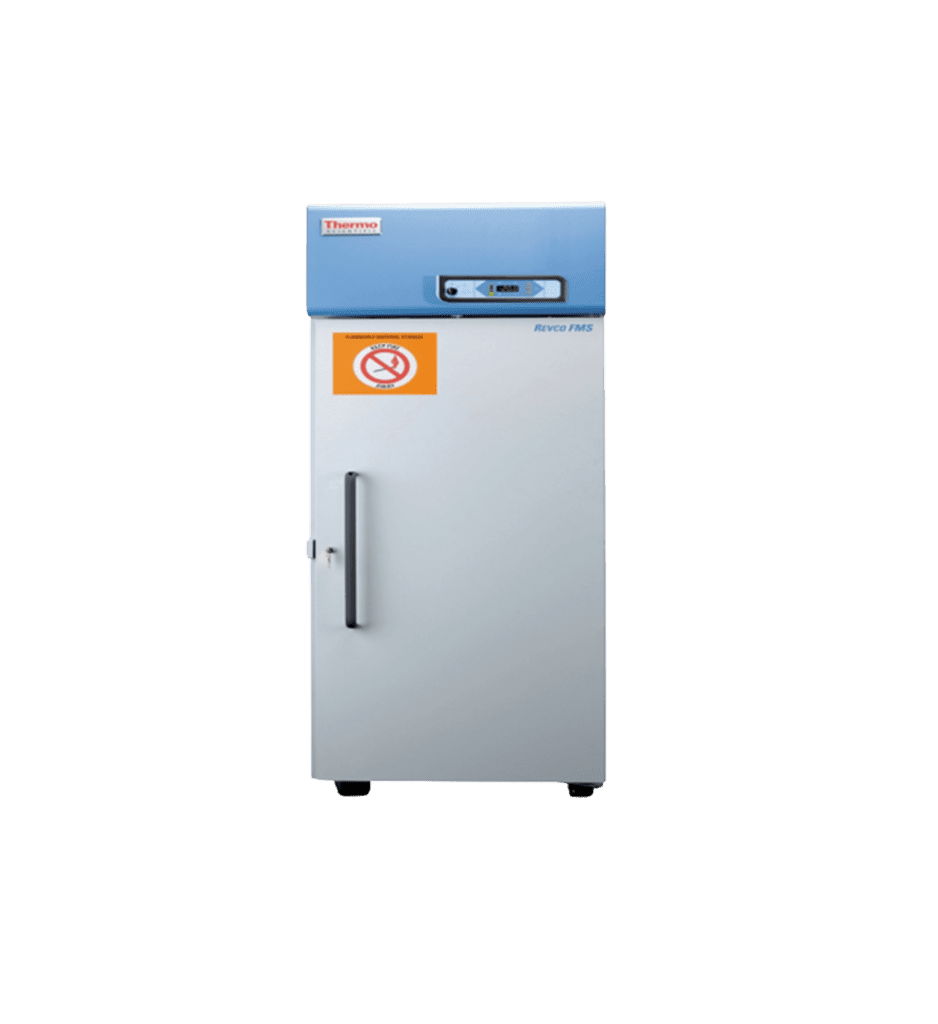

Revco™ FMS High-Performance Lab Refrigerators
Manufacturer – Thermo Fisher Scientific
Description: Revco FMS High-Performance Lab Refrigerator is a specially designed laboratory refrigeration unit for storing flammable materials, solvents and intermediates under tight temperature control while meeting regulatory safety standards. It is listed by UL as a “special purpose refrigerator” intended for flammable-material storage in accordance with Underwriters Laboratories (UL), National Fire Protection Association (NFPA) 45, 70 and 99, and meets related Occupational Safety and Health Administration (OSHA) guidelines.
Technical Specifications:
Amperage: 4A
Breaker: 15A
Defrost: Manual
Depth (English) Interior: 29 in.
Depth (Metric) Interior: 74 cm
Frequency: 60 Hz
Height (English) Exterior: 78.6 in.
Height (English) Interior: 58 in.
Height (Metric) Exterior: 200 cm
Height (Metric) Interior: 147 cm
Length (English) Exterior: 37 in.
Length (Metric) Exterior: 94 cm
Shipping Weight (English): 425 lb.
Shipping Weight (Metric): 193 kg
Static Holding Time: 7 Days
Width (English) Exterior: 28 in.
Width (English) Interior: 24 in.
Width (Metric) Exterior: 72 cm
Width (Metric) Interior: 61 cm
Cabinet Material: Spark-free Steel
Capacity (English): 23 cu. ft.
Capacity (Metric): 651 L
Certifications/Compliance: UL
Door Style: Solid
Exterior Finish: Painted
Monitoring Options: Alarm, Recorder
No. of Doors: 1
Plug Type: NEMA 5-15
Shelves: 4
Style: Built-in
Temperature Range: 1°C to 8°C
Voltage: 115 V
Unit Size: Each
Key Features:
• Ignition-free interior cabinet design (no internal electrical components that could trigger an explosion or fire of flammable materials inside the unit).
• Lockable doors; audio/visual alarms including door-ajar alarm for added security and peace of mind.
• Manual defrost system.
• Convenient access port and casters (mobility) built in.
• High-quality steel cabinet construction (“spark-free steel” or “spark-free interior cabinet design”).
• Microprocessor digital display and intuitive controls.
• UL listing, NFPA 45/70/99 compliance, OSHA guidelines.
• Narrow temperature range control: +1 °C to +8 °C.
• Optional built-in inkless 7-day graphic chart recorder and optional barrier-protected 4-20 mA output for external monitoring.
Applications: Used for safe storage of flammable solvents, reagents, pharmaceutical compounds or drug-storage inventories in laboratory and industrial settings where +1 °C to +8 °C controlled temperatures and stringent safety compliance are required.
Catalog Numbers:
RFMS2305A
